Home > Cables for Seasonic PSU > ATX 24-Pin Cable for Seasonic
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
1/1
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift

ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...

SKU: 1A2403-18#-60

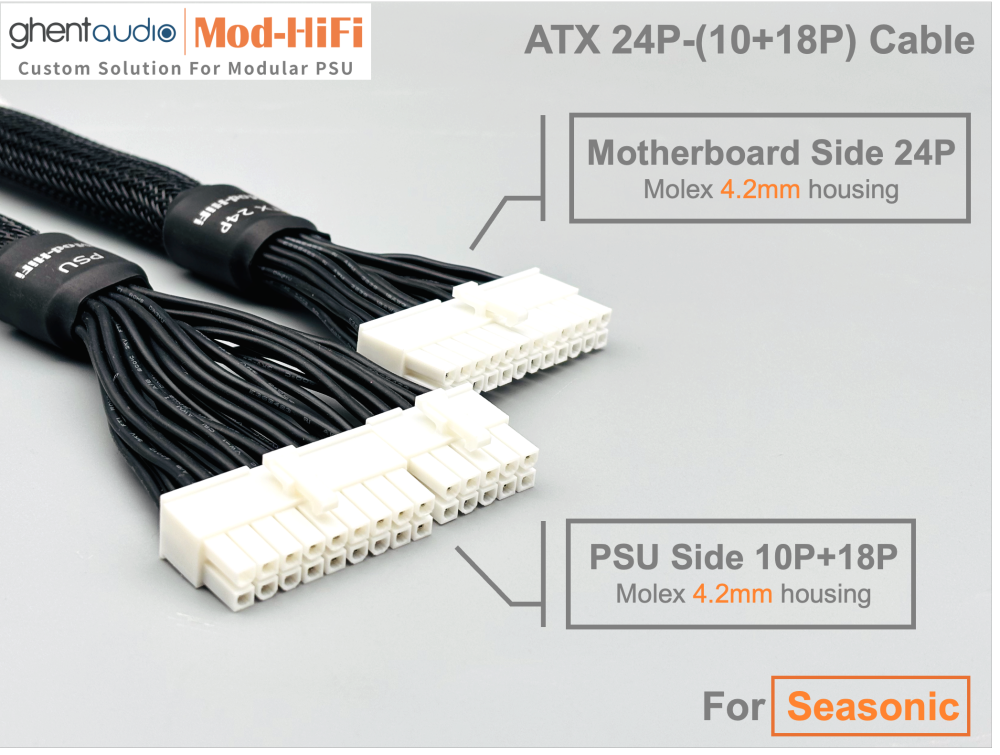

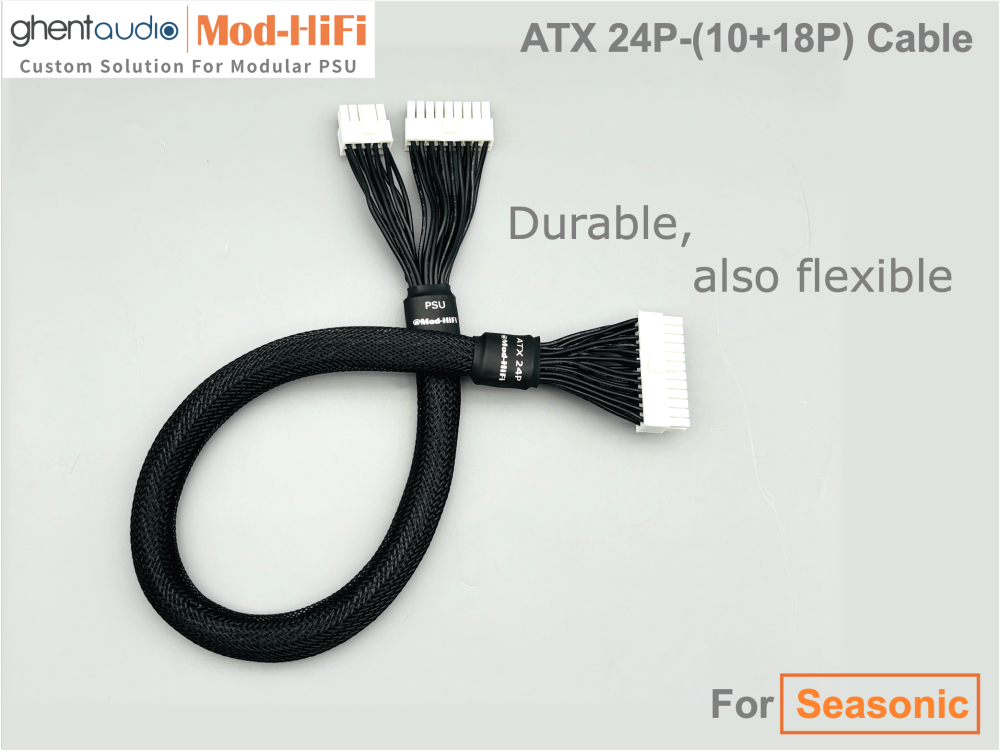

ATX 24P Cable, directly applied to PSU and motherboard
Hook-up wires options:
  - UL3239 Silicone, 18AWG (black)
  - 16AWG on 12V pins
  - UL3239 Silicone, 16AWG (black)
Length: tip-to-tip length, customizable
Black sleeving by default, customizable
Compatible with Seasonic PSUs, e.g. CORE Gold GX-650, FOCUS Gold GM-850, FOCUS Platinum PX-850, PRIME ATX 3.1 TX-1600, PRIME Platinum PX-1300, VERTEX Platinum PX-1000...



5.0 (1 Reviews)
7 Sold
$0.00 $19.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • HOOK-UP WIRE:
  • LENGTH:
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (0)
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
1/1
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Seasonic: e.g. CORE Gold GX-650 | FOCUS Gold GM-850 | FOCUS Platinum PX-850 | PRIME ATX 3.1 TX-1600 | PRIME Platinum PX-1300 | VERTEX Platinum PX-1000...
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • ATX 24-Pin Cable for Corsair Type5: SF SF-L RMx-Shift
  • Description
  • Compatibility
  • Order Handling
  • [Wire] 3239 Silicone
  • [Wire] Gotham OFC
  • Molex® Connectors

✅ Brief
- Qty: 1 pcs
- Cable Type: ATX 24-Pin
- Hook-Up Wires Options
    - UL3239 silicone wire, 18AWG (black)
    - 16AWG on 12V pins
    - UL3239 silicone wire, 16AWG (black)
 - Length (tip-to-tip)
    - 60cm / 24 inch, for full tower builds
    - 30cm / 12 inch, for compact builds
    - other lengths customizable
- Style: black sleeving by default
- Compatibility: Seasonic PSUs (detailed models please see above "compatibility" tab)

🌟 Features

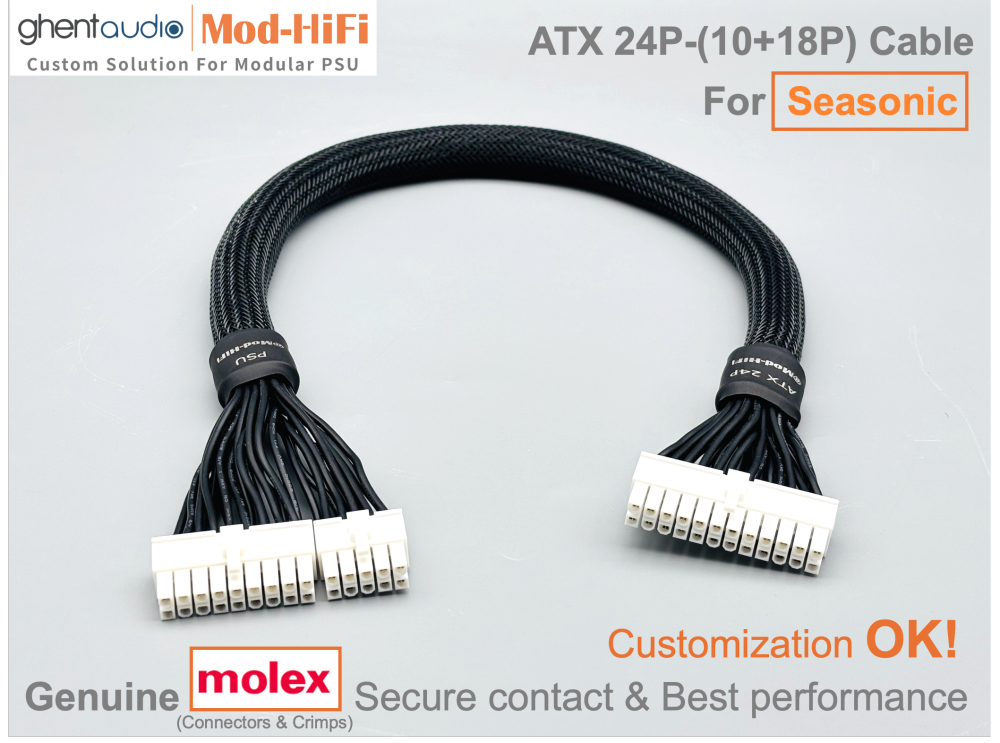

- Genuine Molex® connectors and terminals, ensuring safe and firm connection
- UL3239-certified high quality, AWG18 ensuring stable power transmission

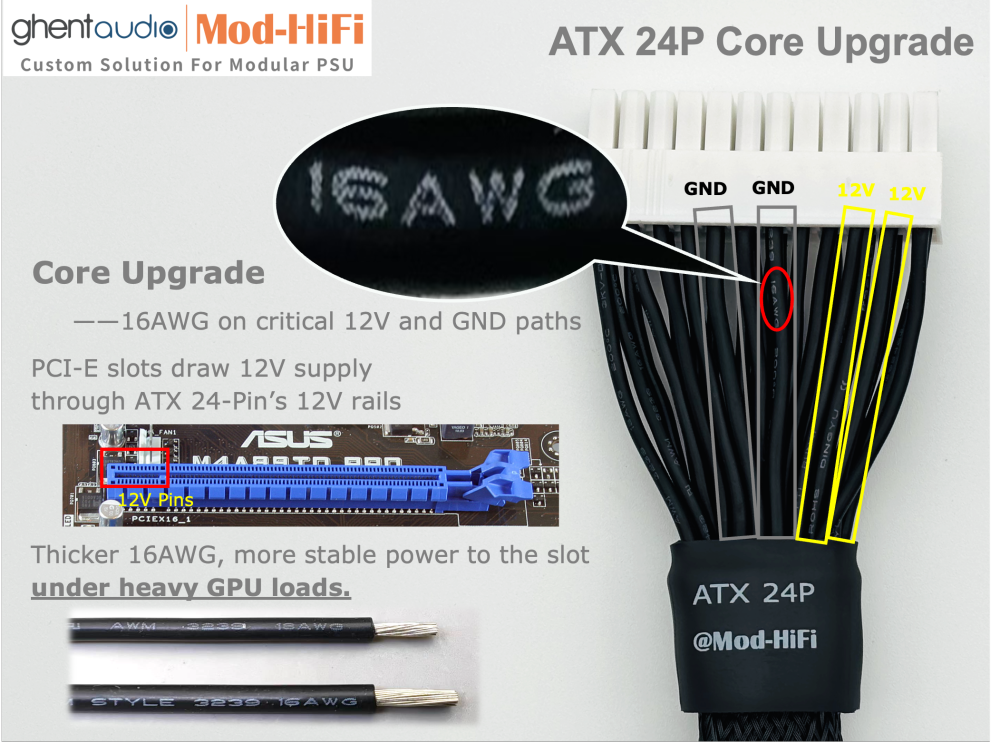

- 16AWG applied on critical 12V and related GND paths, greatly enhancing PCI-E slots powering
- Full 16AWG Upgrade, ultimate current capacity for motherboard power cables

🛠️ About 16AWG on 12V Paths

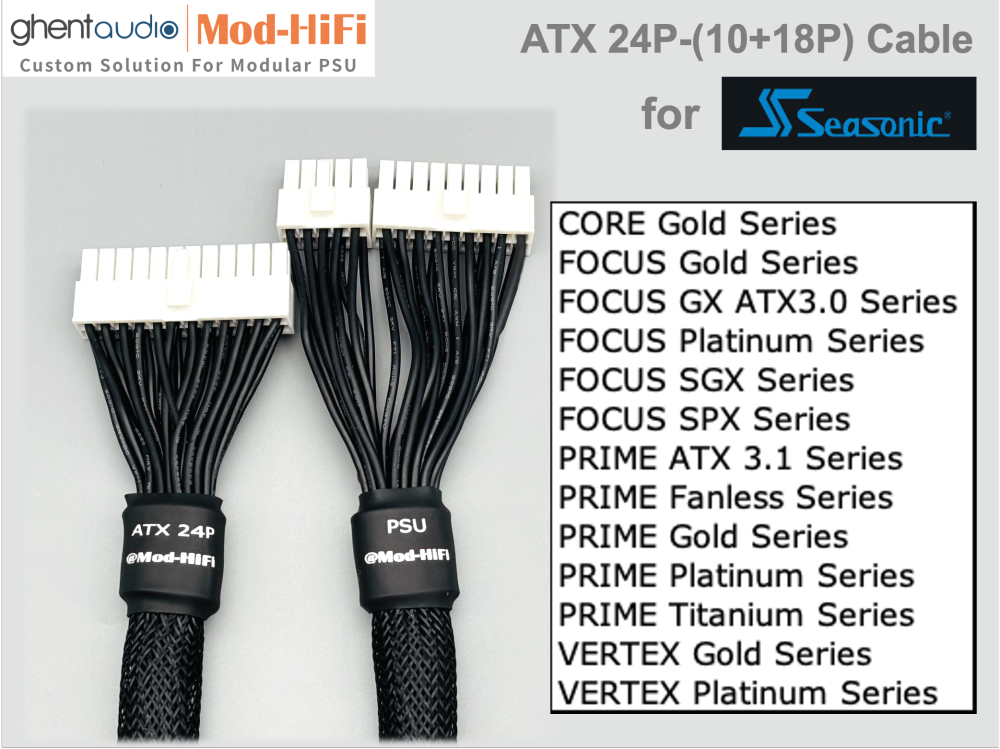

💻 Compatible Models:
CORE Gold Series GM-500
GM-550
GM-650
GX-500
GX-550
GX-650
GX ATX3 650W
GX ATX3 750W
GX ATX3 850W
FOCUS Gold Series GM-550
GM-650
GM-750
GM-850
GX-550
GX-650
GX-750
GX-850
GX-1000
FOCUS GX ATX3.0 Series GX-750 ATX 3
GX-850 ATX 3
GX-1000 ATX 3
FOCUS Platinum Series PX-550
PX-650
PX-750
PX-850
FOCUS SGX Series SGX-550
SGX-650
SGX-750
FOCUS SPX Series SPX-650
SPX-750
PRIME ATX 3.1 Series PX-1600 ATX 3.1
TX-1300 ATX 3.1
TX-1600 ATX 3.1
PRIME Fanless Series PX-450
PX-550
TX-600
TX-700
PRIME Gold Series GX-650
GX-750
GX-850
GX-1000
GX-1300
PRIME Platinum Series PX-650
PX-750
PX-850
PX-1000
PX-1300
PX-1600
PRIME Titanium Series TX-650
TX-750
TX-850
TX-1000
TX-1300
TX-1600
VERTEX Gold Series GX-750
GX-850
GX-1000
GX-1200
VERTEX Platinum Series PX-750
PX-850
PX-1000
PX-1200

If you are not sure about your PSU model, or cannot find it in the above table, please contact us (rui@ghentaudio.com).

📦 Order Handling & Custom Options
- Handling Time:
    - For standard cables: 1-2 business days
    - For custom orders*: may require 5 business days
    - For bulk orders: may require 14 business days or longer depend on the volume
    - All cables are carefully handmade, thanks for your patience
- Up-Level price policy for custom cable length
    - For ATX 24P, SATA, Molex LP4 cables: 20cm = 30cm, 50cm = 60cm, > 60cm = extra price...
    - For CPU/GPU cables: 30cm = 40cm, 60cm = 70cm, > 70cm = extra price...
- For any custom needs** (e.g. lengths, wire color, sleeving or connectors...), please leave a comment at the "Special Instructions" section when checking out or contact us (rui@ghentaudio.com) immediately after placing the order.
- Welcome any other questions, please mail to rui@ghentaudio.com to contact us.

* Custom orders cannot be returned or refunded, unless the item is defective or damaged due to our fault.
** Note that extra $2 will be charged for customization other than lengths, we will contact you in case your needs are beyond our current stock.

🛠️ About UL-Certified Cables

- High Voltage Rated: Typically 3 kV DC
- High Temperature Tolerance: -60 °C to +150 °C
- Flexible Silicone Insulation: Easy to route in tight spaces
- Flame Retardant: Passes UL VW-1 vertical flame test
- Chemical, Moisture, and UV Resistant: Long-term durability inside PC cases
- Stranded Tinned Copper Conductor: Good conductivity and corrosion resistance

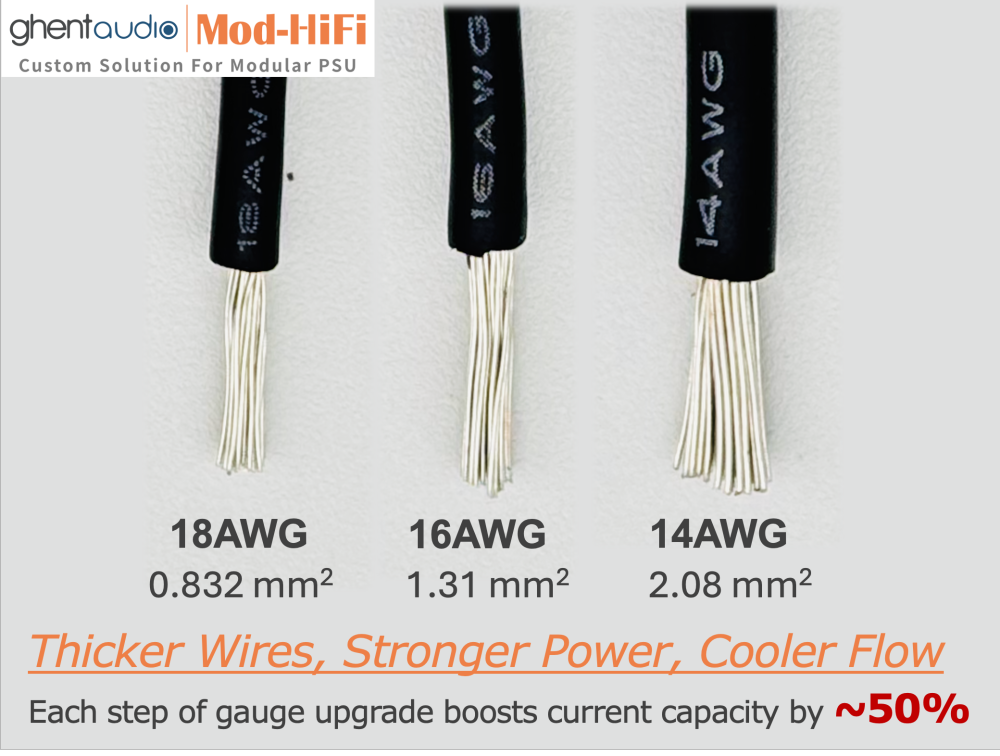

18AWG vs. 16AWG vs. 14AWG
🛠️ About Gotham OFC
Gotham oxygen free copper (OFC), stranded in PVC jacket, Highest OFC copper in all Gotham Cables.

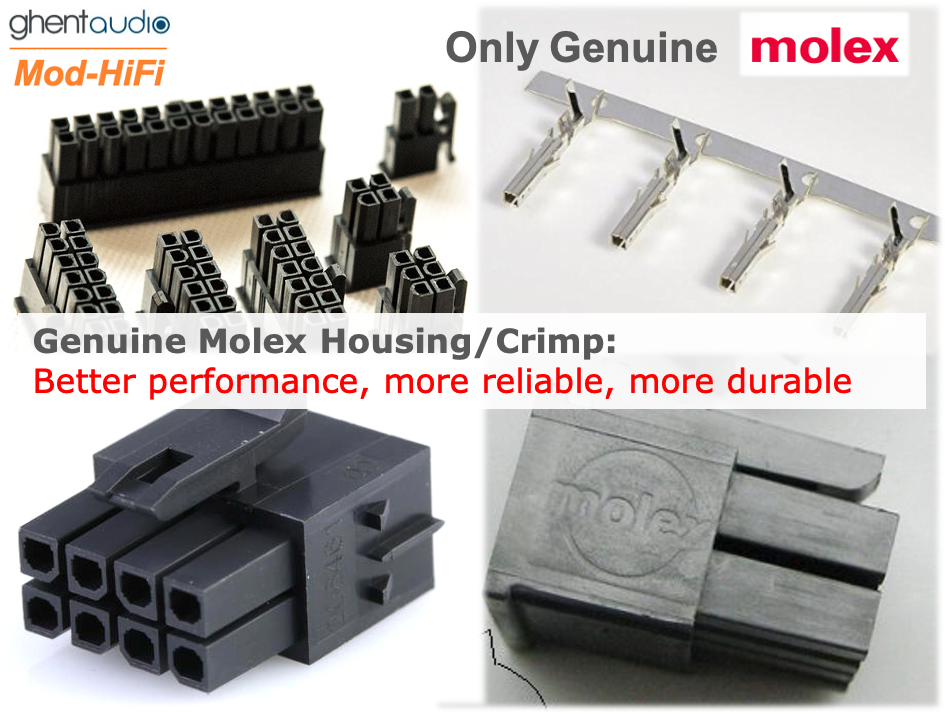

🛠️ About Molex® Connectors
- Reliable power delivery with low resistance and minimal heat
- Secure mechanical fit ensures long-term reliability
- Perfect crimping compatibility reduces risk of poor contact
- UL/CSA certified safety & compliance
- Widely used by major OEMs (Corsair, SeaSonic, EVGA, etc.), perfectly matching modular layouts

* Note that Molex® 4.2-pitch connectors do not have logos or part numbers on them
** Note that colors may vary a bit due to different product batches from Molex®
*** Due to limited connector color / styles Molex® provides, we may use JMT connectors (also widely used by major PSU manufacturers) when you need customization on connectors.
